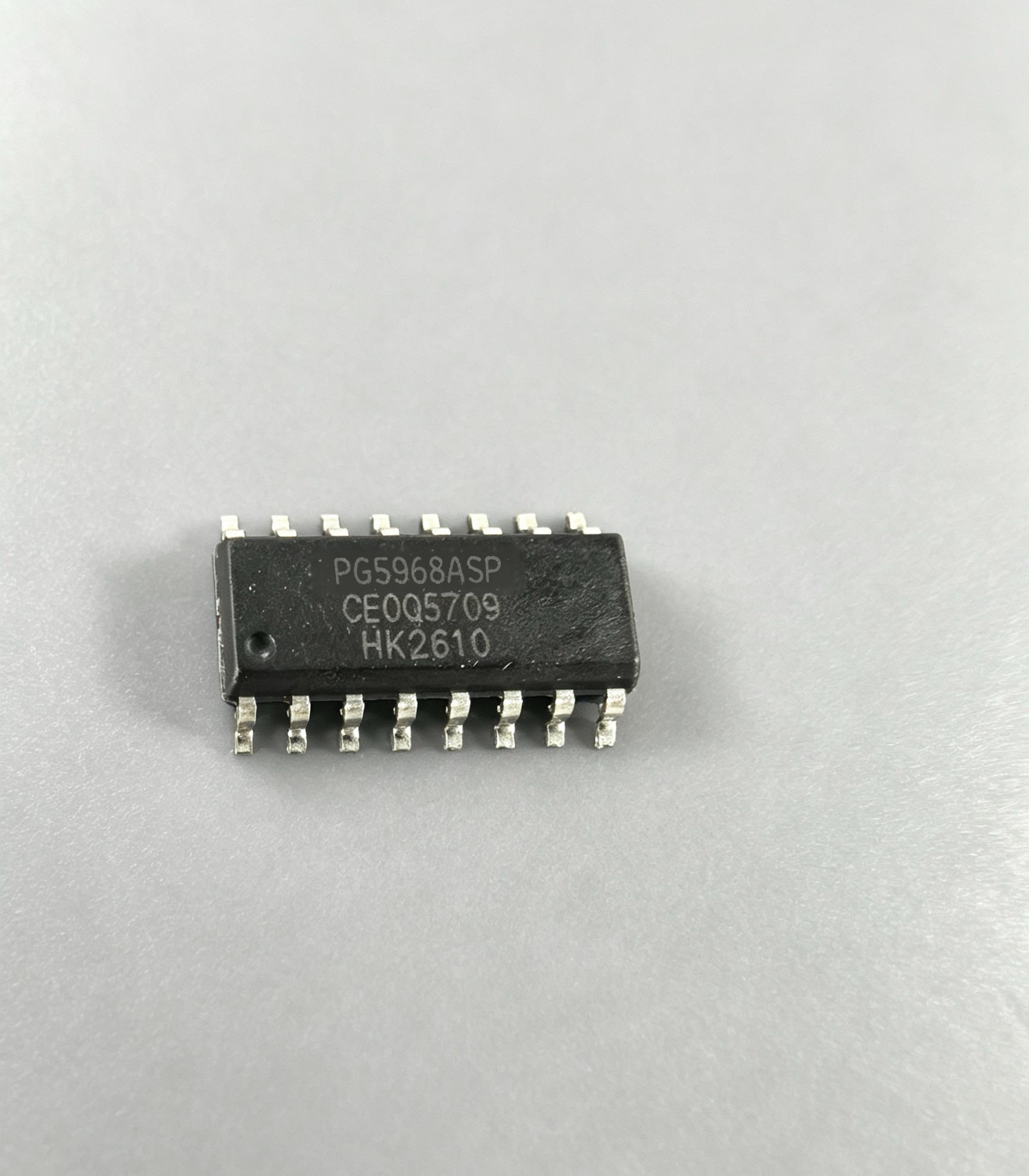

Photographs show the package and laser marking of the device. Mechanical dimensions, pin-out and the applicable temperature grade are confirmed against the manufacturer's current datasheet — ask for it with your quotation.
Product information
| Ordering code | PG5968 · PG5968QFN |
|---|---|
| Product line | LED Display Control & Driver ICs |
| Form | Integrated Circuit (IC) |
| Channels | 8 |
| Output type | N-MOS (common cathode) |
| RDS(ON) | Vgs @ −5.0 V, Ids @ −2.0 A ≤ 120 mΩ (test bias as stated in the datasheet) |
| Integration | Integrated control IC with serial decoder and shift registers |
| Shift registers | 8 |
| Built-in functions | Common-cathode pre-charge control |
| Replaces | 3-to-8 decoder |
| Applications | Indoor and outdoor common-cathode LED displays |
Ordering information
| Ordering code | Package | Pitch / size |
|---|---|---|
PG5968 | SOP16-150 mil | 1.27 mm |
PG5968QFN | QFN16 | 4 × 4 mm |
pengrui
PG5968 Common-Cathode LED Driver IC
PG5968
8-channel N-MOS integrated control IC for common-cathode LED displays, with pre-charge control. Available in SOP16 and QFN16 packages.
Independent Supply
This product is offered by Pengrui Technology through independent sourcing channels. We are not an authorized distributor or agent of the manufacturer.
Availability, product condition, date code, packaging, supporting documentation and warranty terms are subject to confirmation in our written quotation.
Add this part to your quote list to request several line items together, or send the ordering code directly. Tell us the grade you need for FPGA and SoC devices.
- Industrial and wide-temperature industrial grades available for FPGA and SoC
- Technical selection support from the same team that quotes you
- PCB fabrication available for the same project through our partner network
