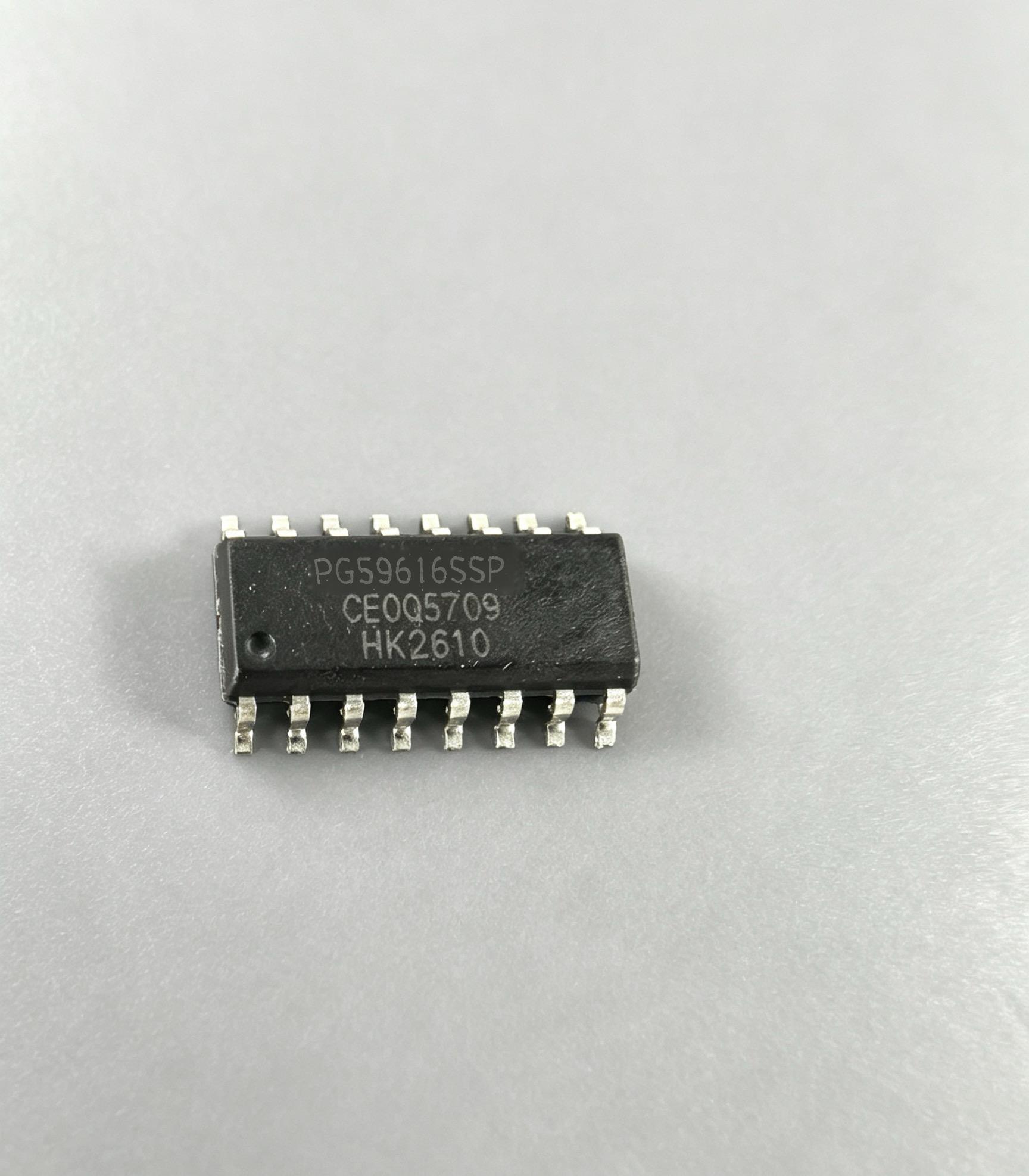

Photographs show the package and laser marking of the device. Mechanical dimensions, pin-out and the applicable temperature grade are confirmed against the manufacturer's current datasheet — ask for it with your quotation.
Product information
| Ordering code | PG59616 · PG59616QFN |
|---|---|
| Product line | LED Display Control & Driver ICs |
| Form | Integrated Circuit (IC) |
| Channels | 16 |
| Output type | N-MOS (common cathode) |
| RDS(ON) | Vgs @ -4.5 V, Ids @ -2.0 A ≤ 200 mΩ |
| Package | SOP24-150 mil, 0.635 mm pitch · QFN24 4 × 4 mm |
| Shift registers | 16 |
| Built-in functions | Ghosting elimination (rising), LED short-circuit series-lighting handling, open-circuit cross-line handling |
| Applications | Indoor and outdoor LED displays |
| Note | Datasheet available on request. |
Ordering information
| Ordering code | Package | Pitch / size |
|---|---|---|
PG59616 | SOP24-150 mil | 0.635 mm |
PG59616QFN | QFN24 | 4 × 4 mm |
pengrui
PG59616 Common-Cathode LED Driver IC
PG59616
16-channel N-MOS control IC for common-cathode LED displays, with ghosting elimination and short/open-circuit handling.
Independent Supply
This product is offered by Pengrui Technology through independent sourcing channels. We are not an authorized distributor or agent of the manufacturer.
Availability, product condition, date code, packaging, supporting documentation and warranty terms are subject to confirmation in our written quotation.
Add this part to your quote list to request several line items together, or send the ordering code directly. Tell us the grade you need for FPGA and SoC devices.
- Industrial and wide-temperature industrial grades available for FPGA and SoC
- Technical selection support from the same team that quotes you
- PCB fabrication available for the same project through our partner network
