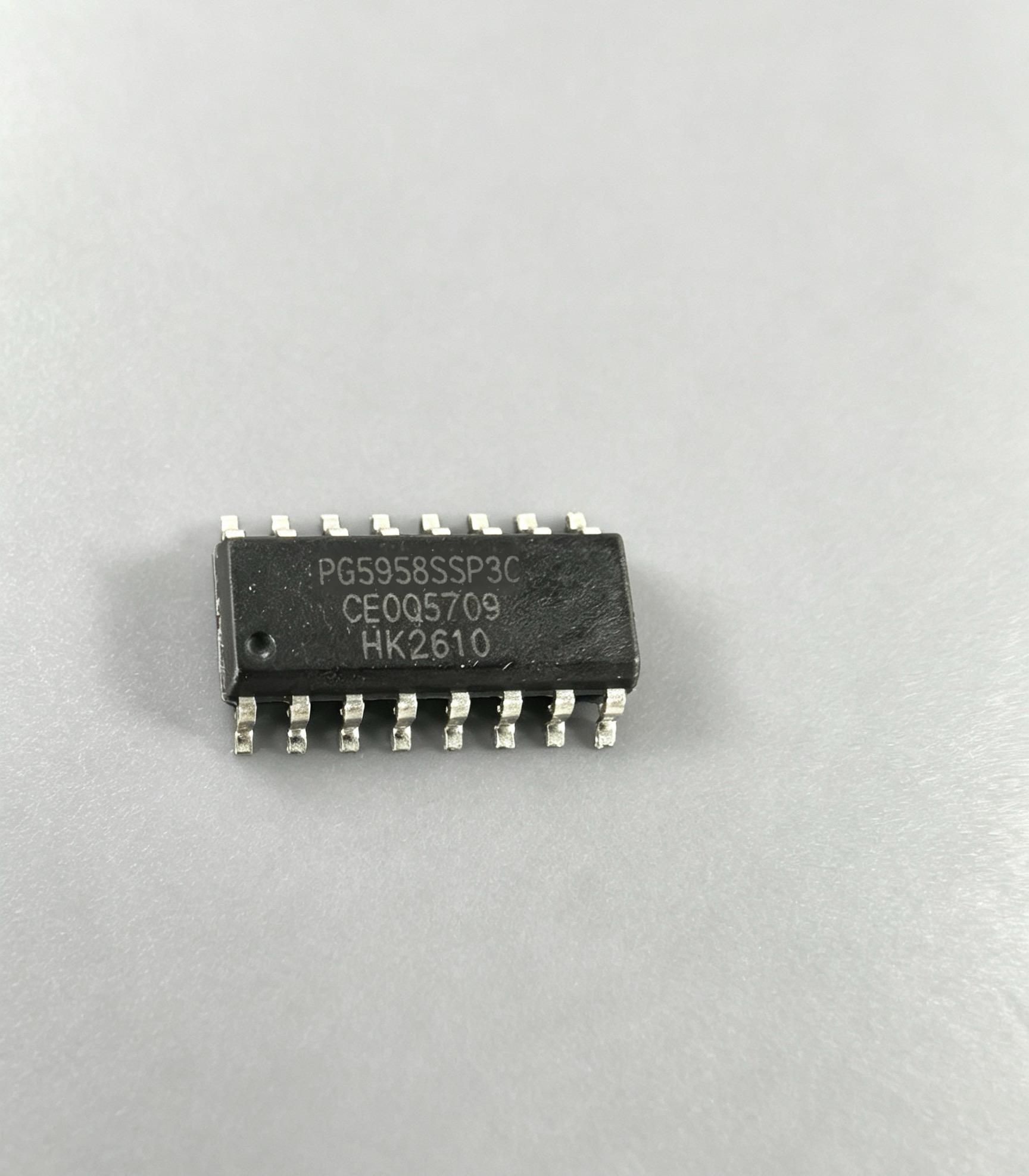

Photographs show the package and laser marking of the device. Mechanical dimensions, pin-out and the applicable temperature grade are confirmed against the manufacturer's current datasheet — ask for it with your quotation.
Product information
| Ordering code | PG5958 |
|---|---|
| Product line | LED Display Control & Driver ICs |
| Form | Integrated Circuit (IC) |
| Channels | 8 |
| Output type | P-MOS |
| Operating voltage | 2.8 – 5 V |
| Working current | 3 A / 3.5 A |
| RDS(ON) | Vgs @ -4.5 V, Ids @ -2.0 A ≤ 120 mΩ |
| Package | SOP16-150 mil, 1.27 mm pitch |
| Shift registers | 8 |
| Built-in functions | Ghosting elimination (rising), LED short-circuit series-lighting (caterpillar) handling, open-circuit cross-line handling |
| Replaces | 3-to-8 decoder |
| Applications | Indoor and outdoor LED displays |
| Note | Datasheet available on request. |
pengrui
PG5958 LED Display Driver IC
PG5958
8-channel P-MOS integrated control IC for high-refresh LED displays, with ghosting elimination and short/open-circuit handling.
