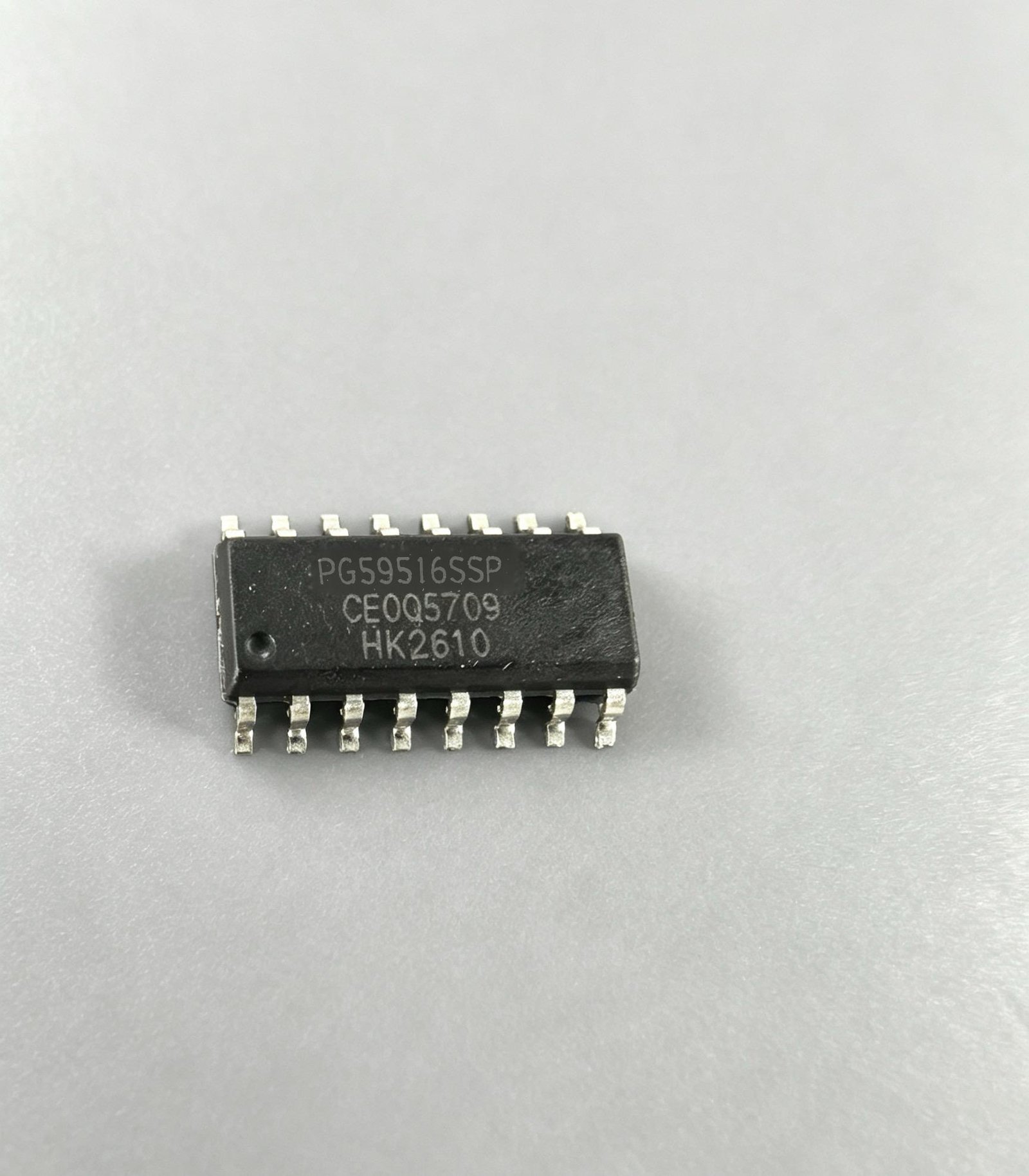

Photographs show the package and laser marking of the device. Mechanical dimensions, pin-out and the applicable temperature grade are confirmed against the manufacturer's current datasheet — ask for it with your quotation.
Product information
| Ordering code | PG59516 |
|---|---|
| Product line | LED Display Control & Driver ICs |
| Form | Integrated Circuit (IC) |
| Channels | 16 |
| Output type | P-MOS |
| RDS(ON) | Vgs @ -4.5 V, Ids @ -2.0 A ≤ 120 mΩ |
| Package | SOP24-150 mil, 0.635 mm pitch |
| Shift registers | 16 |
| Built-in functions | Ghosting elimination (rising), LED short-circuit series-lighting handling, open-circuit cross-line handling |
| Replaces | 4-to-16 decoder |
| Applications | Indoor and outdoor LED displays |
| Note | Datasheet available on request. |
Ordering information
| Ordering code | Package | Pitch / size |
|---|---|---|
PG59516 | SOP24-150 mil | 0.635 mm |
pengrui
PG59516 LED Display Driver IC
PG59516
16-channel P-MOS integrated control IC for high-refresh LED displays, replacing a 4-to-16 decoder.
